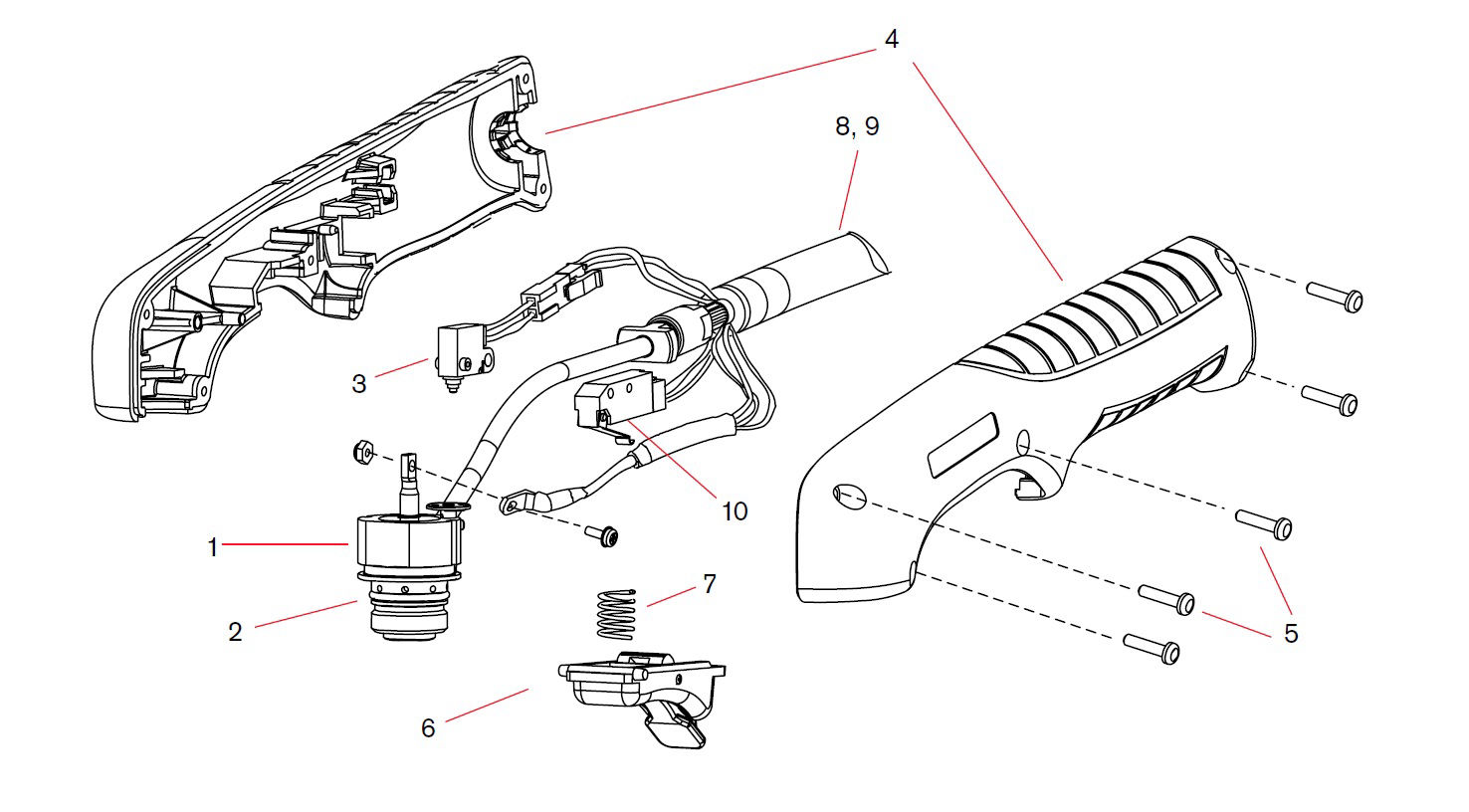

T45v Hand Torch torch assembly and replacement parts from the Hypertherm parts catalog. Match the item number on the breakdown to the parts list before ordering.
As an Amazon Associate, I earn from qualifying purchases. Buy buttons only appear where a WSP-approved Amazon registry match exists.
| Item # | Part # | Description | Qty | Buy |
|---|---|---|---|---|
| Torch | 088008 |
Hypertherm Torch Assembly 088008
|
Check Price on Amazon | |
| Torch | 088009 |
Hypertherm Torch Assembly 088009
|
Check Price on Amazon | |
| 1 | 228346 |
Hypertherm Torch Body 228346
|
Check Price on Amazon | |
| 2 | 058503 |
Hypertherm O-Ring 058503
|
Check Price on Amazon | |
| 3 | 228109 |
Hypertherm Switch/Sensor 228109
|
Verification pending | |
| 4 | 228313 |
Hypertherm Torch Handle 228313
|
Check Price on Amazon | |
| 5 | 075714 |
Hypertherm Torch Handle 075714
|
Verification pending | |
| 6 | 002244 |
Hypertherm Torch Assembly 002244
|
Check Price on Amazon | |
| 7 | 027254 |
Hypertherm part 027254
|
Check Price on Amazon | |
| 8 | 228315 |
Hypertherm Torch Lead 228315
|
Check Price on Amazon | |
| 9 | 228316 |
Hypertherm Torch Lead 228316
|
Verification pending | |
| 10 | 128642 |
Hypertherm Switch/Sensor 128642
|
Check Price on Amazon | |
228300 |
Hypertherm Torch Lead 228300
|
Check Price on Amazon | ||
228307 |
Hypertherm Torch Lead 228307
|
Check Price on Amazon |
Source: 2023 Hypertherm Torch and Consumables Catalog for Powermax and MAX Plasma Systems, page 54. Catalog page images are used when a cleaned diagram asset is not already available.
Hypertherm plasma support

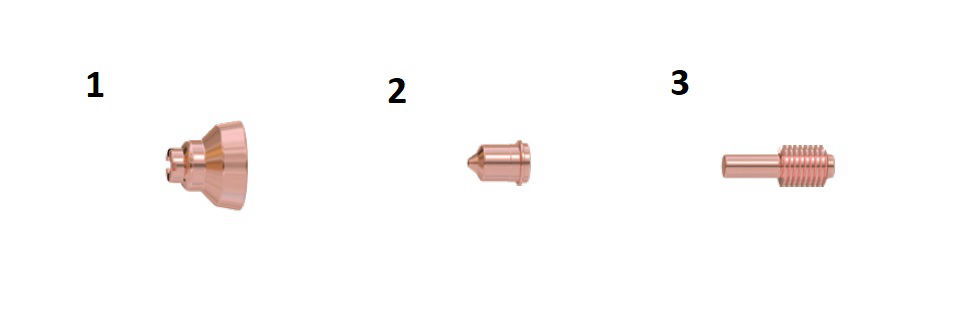

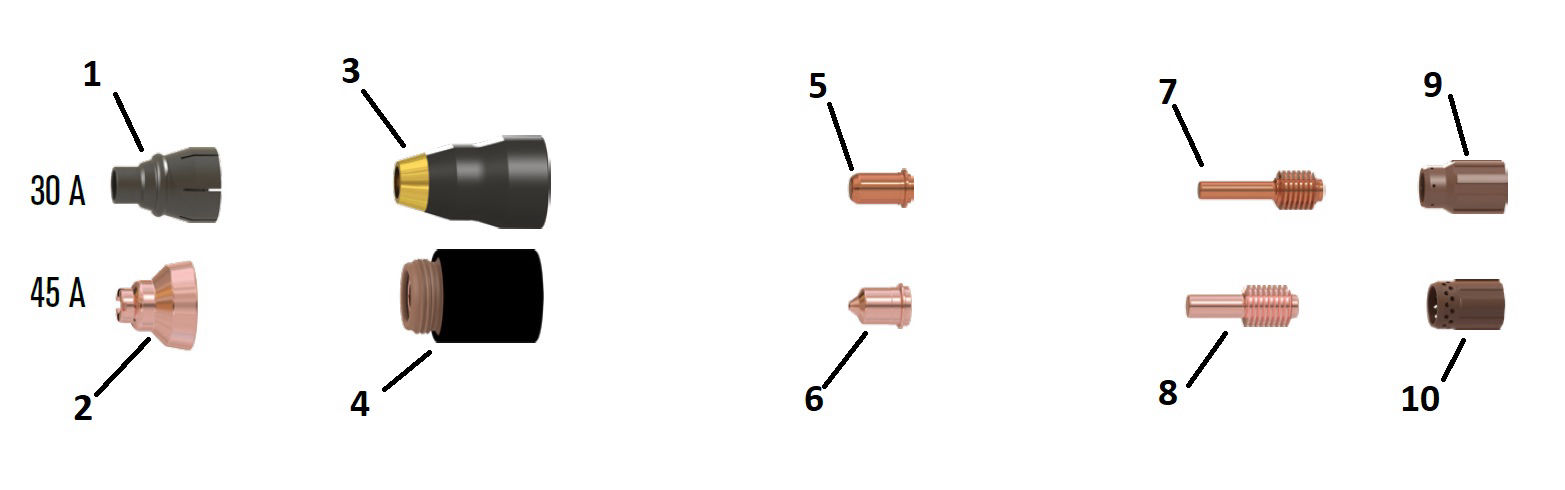

T45v Hand Torch consumables from the Hypertherm consumables catalog. Confirm machine, torch style, amperage, and process before ordering.
As an Amazon Associate, I earn from qualifying purchases. Buy buttons only appear where a WSP-approved Amazon registry match exists.
| Item # | Part # | Description | Qty | Buy |
|---|---|---|---|---|
220478 |
Hypertherm Electrode 220478
|
Check Price on Amazon | ||
220479 |
Hypertherm Swirl ring 220479
|
Verification pending | ||
220480 |
Hypertherm Nozzle 220480
|
Check Price on Amazon | ||
220483 |
Hypertherm Retaining cap 220483
|
Verification pending | ||
220569 |
Hypertherm Shield/deflector 220569
|
Verification pending | ||
220669 |
Hypertherm Electrode 220669
|
Check Price on Amazon | ||
220669 |
Hypertherm part 220669
|
Check Price on Amazon | ||
220670 |
Hypertherm Swirl ring 220670
|
Check Price on Amazon | ||
220670 |
Hypertherm part 220670
|
Check Price on Amazon | ||
220671 |
Hypertherm Nozzle 220671
|
Check Price on Amazon | ||
220671 |
Hypertherm part 220671
|
Check Price on Amazon | ||
220672 |
Hypertherm Nozzle 220672
|
Verification pending | ||
220673 |
Hypertherm part 220673
|
Verification pending | ||
220674 |
Hypertherm Shield/deflector 220674
|
Check Price on Amazon | ||
220674 |
Hypertherm part 220674
|
Check Price on Amazon | ||
220675 |
Hypertherm Shield/deflector 220675
|
Verification pending | ||
220713 |
Hypertherm Retaining cap 220713
|
Check Price on Amazon | ||
220713 |
Hypertherm part 220713
|
Check Price on Amazon | ||
220717 |
Hypertherm part 220717
|
Verification pending | ||
220717 |
Hypertherm Shield/deflector 220717
|
Verification pending | ||
220718 |
Hypertherm part 220718
|
Verification pending | ||
220718 |
Hypertherm Nozzle 220718
|
Verification pending | ||
220719 |
Hypertherm part 220719
|
Verification pending | ||

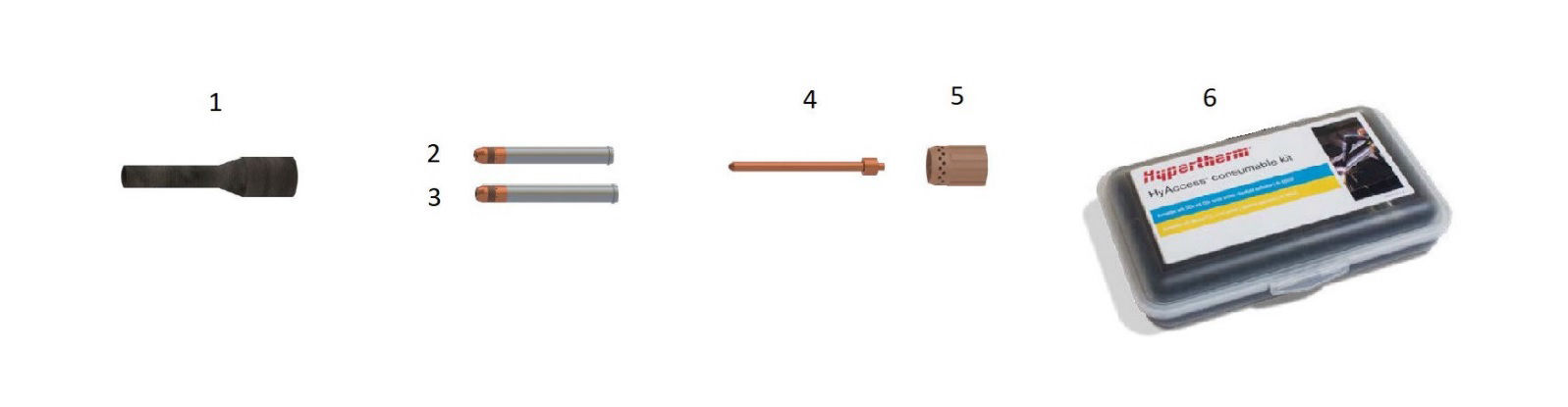

428442 |
Hypertherm Kit 428442
|
Verification pending | ||
851477 |
Hypertherm Kit 851477
|
Verification pending | ||
851478 |
Hypertherm Kit 851478
|
Verification pending |
Source: 2023 Hypertherm Torch and Consumables Catalog for Powermax and MAX Plasma Systems, page 52. Catalog page images are used when a cleaned diagram asset is not already available.
