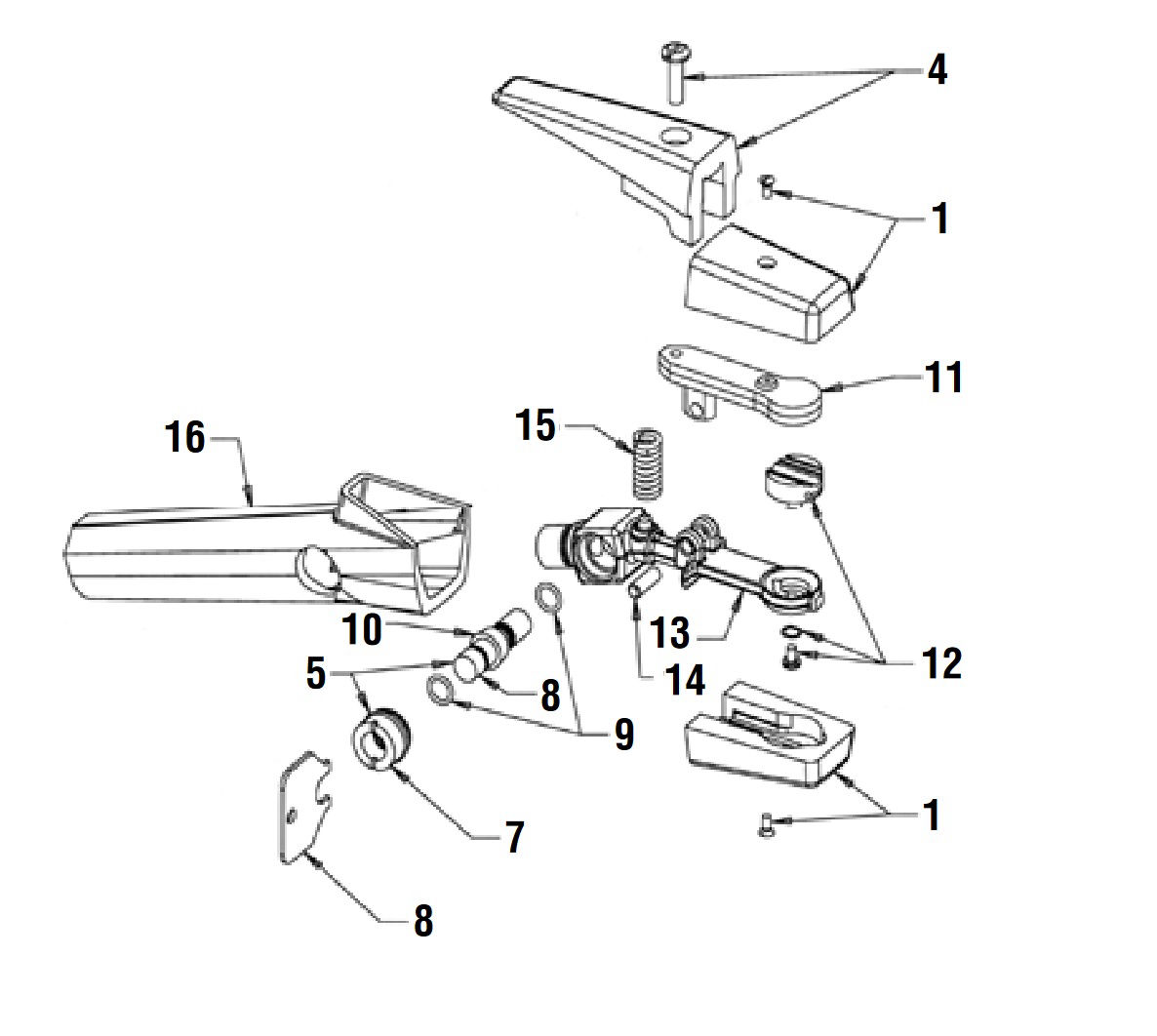

Arcair K-4000 Torch Parts

Arcair K-4000 Torch Parts structured from the existing support table for faster visual-to-part lookup.

Item number lookup

Parts List

As an Amazon Associate, I earn from qualifying purchases.

Item # Part # Description Qty Buy
Complete Torch 61-082-008
Torch w/ 7 ft. Cable
torch assembly Arcair K-4000 Torch Parts Common replacement
Arcair K-4000 Torch Parts
N/A
Complete Torch 61-082-006
Torch w/ 7 ft. Cable & Insulated Hook-Up Kit
torch assembly Arcair K-4000 Torch Parts Common replacement
Arcair K-4000 Torch Parts
N/A
Complete Torch 61-082-009
Torch w/ 10 ft. Cable
torch assembly Arcair K-4000 Torch Parts Common replacement
Arcair K-4000 Torch Parts
N/A
Complete Torch 61-082-007
Torch w/ 10 ft. Cable & Insulated Hook-Up Kit
torch assembly Arcair K-4000 Torch Parts Common replacement
Arcair K-4000 Torch Parts
N/A
1 94-433-183
Insulators and screws
hardware Arcair K-4000 Torch Parts
Arcair K-4000 Torch Parts
N/A
4 94-476-066
Lever and screw
hardware Arcair K-4000 Torch Parts
Arcair K-4000 Torch Parts
Amazon link: Needs verification.
5 94-104-016
Valve Bonnet
valve part Arcair K-4000 Torch Parts Common replacement
Arcair K-4000 Torch Parts
N/A
6 94-960-001
Bonnet wrench
body Arcair K-4000 Torch Parts
Arcair K-4000 Torch Parts
N/A
7 94-104-012
Bonnet only
body Arcair K-4000 Torch Parts
Arcair K-4000 Torch Parts
N/A
8 94-801-011
Spool and O-rings
seal Arcair K-4000 Torch Parts Common replacement
Arcair K-4000 Torch Parts
N/A
9 94-710-036
O-ring (2 required)
seal Arcair K-4000 Torch Parts Common replacement
Arcair K-4000 Torch Parts
N/A
10 94-801-010
Spool only
replacement part Arcair K-4000 Torch Parts
Arcair K-4000 Torch Parts
N/A
11 94-048-088
Upper arm
replacement part Arcair K-4000 Torch Parts
Arcair K-4000 Torch Parts
N/A
12 94-378-368
Head and screw
hardware Arcair K-4000 Torch Parts
Arcair K-4000 Torch Parts
N/A
13 94-103-206
Torch body
body Arcair K-4000 Torch Parts
Arcair K-4000 Torch Parts
N/A
14 94-632-094
Hinge pin
hardware Arcair K-4000 Torch Parts
Arcair K-4000 Torch Parts
N/A
15 94-800-077
Spring
hardware Arcair K-4000 Torch Parts Common replacement
Arcair K-4000 Torch Parts
N/A
16 94-370-163
Handle
hardware Arcair K-4000 Torch Parts
Arcair K-4000 Torch Parts
N/A

Related consumables

Arcair K-4000 Cable Assembly Parts

Arcair K-4000 Cable Assembly Parts on this same support page.

Open related section

Arcair K-4000 Hook-Up Kit Parts

Arcair K-4000 Hook-Up Kit Parts on this same support page.

Open related section

carbon arc gouging support

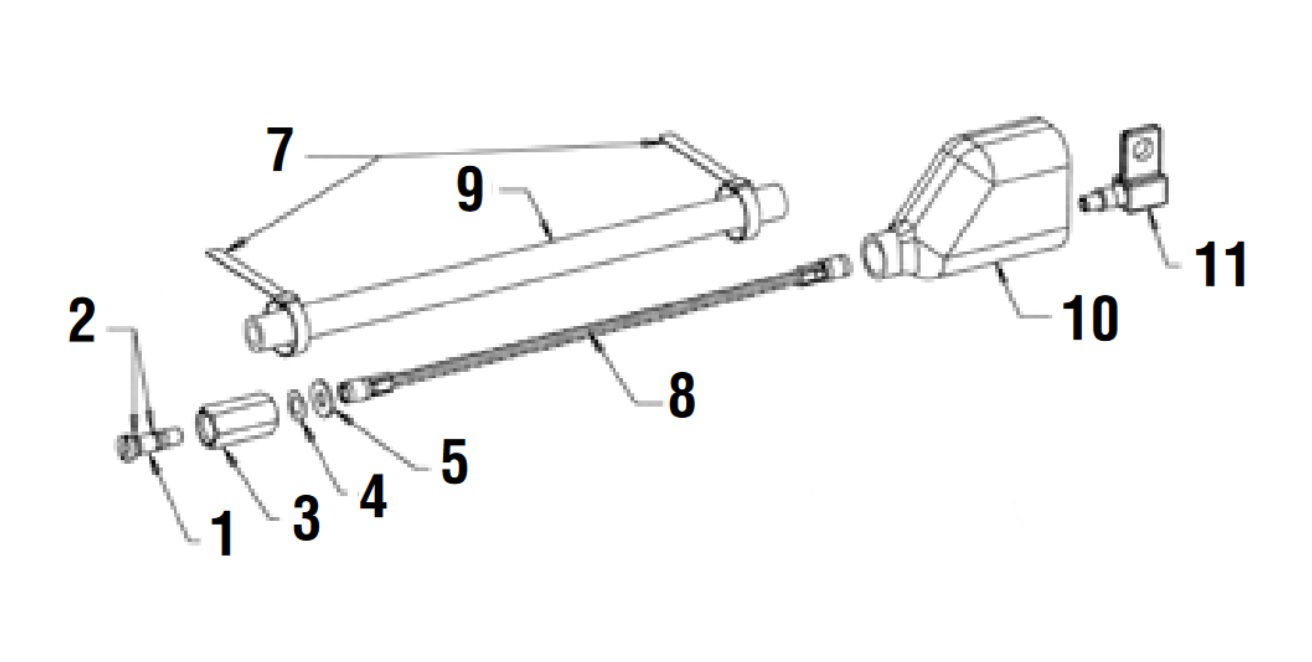

Arcair K-4000 Cable Assembly Parts

Arcair K-4000 Cable Assembly Parts structured from the existing support table for faster visual-to-part lookup.

Item number lookup

Parts List

As an Amazon Associate, I earn from qualifying purchases.

Item # Part # Description Qty Buy
Complete Cable 70-084-207
7' (2.1m) Complete cable assembly
cable assembly Arcair K-4000 Cable Assembly Parts Common replacement
Arcair K-4000 Cable Assembly Parts
N/A
Complete Cable 70-084-210
10' (3m) Complete cable assembly
cable assembly Arcair K-4000 Cable Assembly Parts Common replacement
Arcair K-4000 Cable Assembly Parts
N/A
1 94-170-182
Retainer screw
hardware Arcair K-4000 Cable Assembly Parts
Arcair K-4000 Cable Assembly Parts
N/A
2 94-710-036
O-ring
seal Arcair K-4000 Cable Assembly Parts Common replacement
Arcair K-4000 Cable Assembly Parts
N/A
3 94-170-178
Connector
connector Arcair K-4000 Cable Assembly Parts Common replacement
Arcair K-4000 Cable Assembly Parts
N/A
4 94-940-104
Spring washer
seal Arcair K-4000 Cable Assembly Parts Common replacement
Arcair K-4000 Cable Assembly Parts
N/A
5 94-940-103
Flat washer
seal Arcair K-4000 Cable Assembly Parts Common replacement
Arcair K-4000 Cable Assembly Parts
N/A
7 98-167-010
Clamp (2 required)
replacement part Arcair K-4000 Cable Assembly Parts
Arcair K-4000 Cable Assembly Parts
N/A
8 96-130-263
7' (2.1m) conductor
replacement part Arcair K-4000 Cable Assembly Parts
Arcair K-4000 Cable Assembly Parts
N/A
8 96-130-261
10' (3m) conductor
replacement part Arcair K-4000 Cable Assembly Parts
Arcair K-4000 Cable Assembly Parts
N/A
9 94-171-274
7' / 10' (2.1m) cover
replacement part Arcair K-4000 Cable Assembly Parts
Arcair K-4000 Cable Assembly Parts
N/A
10 94-105-014
Insulating boot
replacement part Arcair K-4000 Cable Assembly Parts
Arcair K-4000 Cable Assembly Parts
N/A
11 94-170-150
Female connector
connector Arcair K-4000 Cable Assembly Parts Common replacement
Arcair K-4000 Cable Assembly Parts
N/A

Related consumables

Arcair K-4000 Torch Parts

Arcair K-4000 Torch Parts on this same support page.

Open related section

Arcair K-4000 Hook-Up Kit Parts

Arcair K-4000 Hook-Up Kit Parts on this same support page.

Open related section

carbon arc gouging support

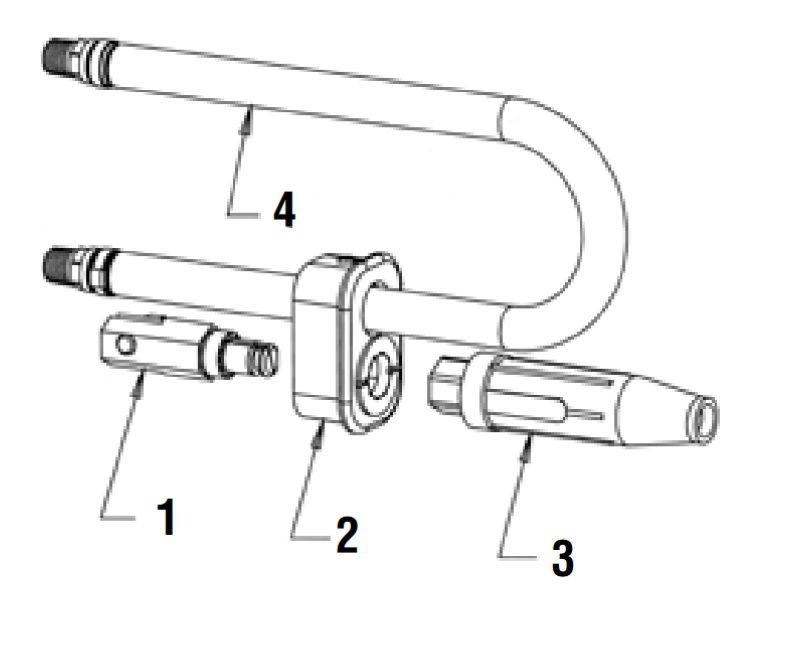

Arcair K-4000 Hook-Up Kit Parts

Arcair K-4000 Hook-Up Kit Parts structured from the existing support table for faster visual-to-part lookup.

Item number lookup

Parts List

As an Amazon Associate, I earn from qualifying purchases.

Item # Part # Description Qty Buy
Complete Kit 94-463-045
Complete hook-up kit
kit Arcair K-4000 Hook-Up Kit Parts Common replacement
Arcair K-4000 Hook-Up Kit Parts
N/A
1 94-170-181
Male gouging connector
connector Arcair K-4000 Hook-Up Kit Parts Common replacement
Arcair K-4000 Hook-Up Kit Parts
N/A
2 94-105-027
Cable boot cap
cable assembly Arcair K-4000 Hook-Up Kit Parts Common replacement
Arcair K-4000 Hook-Up Kit Parts
N/A
3 4-WPC-R
4-WPC-R connector
connector Arcair K-4000 Hook-Up Kit Parts Common replacement
Arcair K-4000 Hook-Up Kit Parts
N/A
4 94-396-205
Pigtail air supply hose
replacement part Arcair K-4000 Hook-Up Kit Parts
Arcair K-4000 Hook-Up Kit Parts
N/A

Related consumables

Arcair K-4000 Torch Parts

Arcair K-4000 Torch Parts on this same support page.

Open related section

Arcair K-4000 Cable Assembly Parts

Arcair K-4000 Cable Assembly Parts on this same support page.

Open related section

Carbon Arc Fitment Check

Match the part number, machine model, gun or torch family, package quantity, and generation before buying. Amazon links are convenience links only, not compatibility proof.
