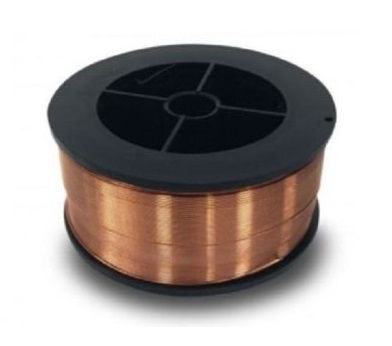

70S-2 .023 x 2 LB - 4" Spool
MIG (GMAW) Process Guidance
Mild Steel ER70S-2 GMAW
ER70S-2 mild steel MIG wire setup guidance, chemistry notes, and spool options.
MIG (GMAW)
Mild Steel
Amazon gated until verified
Process Notes
ER70S-2 is a multiple deoxidized wire containing small amounts of zirconium, titanium and aluminum in addition to the manganese and silicon deoxidizers characteristic of the steel wire group. This wire may be used for MIG or TIG welding on all grades of mild and carbon steels, producing superior quality welds with minimal porosity even
over rust and mill scale. ER70S-2 is popular for out of position welding with small diameter wires utilizing the short-circuiting arc type transfer. MIG welding may he accomplished using CO2, Argon-Oxygen mixtures or mixtures of the two.
TYPICAL CHEMISTRY : Carbon 0.05 Manganese 1.25
Aluminum .100 Zirconium .090
Silicon 0.50 Titanium 0.100
Phosphorus 0.012 Sulfur 0.012
Short-Circuit Setup
Power: DCEP Short Circuit Shielding gas: 98% Argon / 2% Oxygen OR 85% Argon / 15% C02 | SPECIFICATIONS: AWS A5.18, ASME SFA 5.18 |
| Wire Size | Wire Speed (IPM) | Amps | Volts | Travel Speed (IPM) | | Gas Flow (CFH) |
|---|---|---|---|---|---|
| .023 | 80-350 | 30-85 | 14-19 | 10-15 | 20-25 |
| .030 | 110-340 | 40-130 | 15-20 | 12-24 | 20-25 |
| .035 | 100-520 | 60-235 | 16-25 | 11-40 | 20-30 |
| .045 | 70-270 | 90-290 | 18-23 | 12-22 | 25-35 |
Spray Transfer Setup
Power: DCEP Spray Arc Shielding gas: 98% Argon / 2% Oxygen | SPECIFICATIONS: AWS A5.18, ASME SFA 5.18 |
| Wire Size | Wire Speed (IPM) | Amps | Volts | Travel Speed (IPM) | Gas Flow (CFH) |
|---|---|---|---|---|---|
| .035 | 360-600 | 180-280 | 23-30 | 11-22 | 25-35 |
| .045 | 170-550 | 170-375 | 23-29 | 12-21 | 25-35 | |
| .052 | 170-480 | 220-425 | 24-30 | 10-20 | 25-35 |
| 1/16 | 175-350 | 275-475 | 25-31 | 9-19 | 25-35 |
70S-2 Carbon Steel .023 Solid Wire

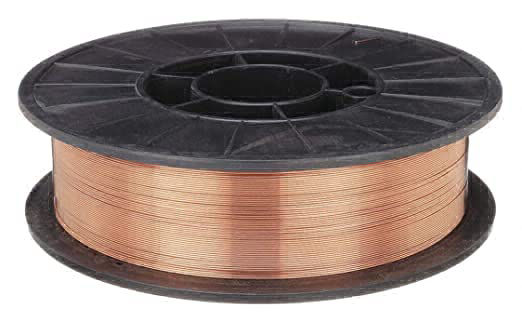

70S-2 .023 x 11 LB - 8" Spool |

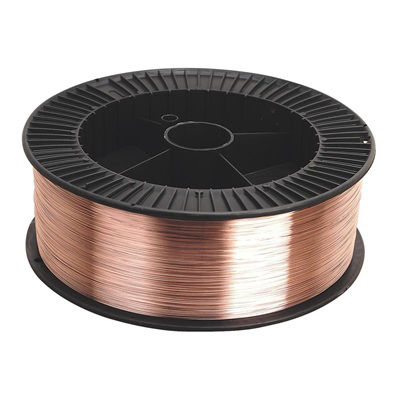

70S-2 .023 x 33 LB Spool - 12" Spool |
70S-2 Carbon Steel .030 Solid Wire
70S-2 .030 x 2 LB - 4" Spool
70S-2 .030 x 11 LB - 8" Spool
70S-2 .030 x 33 LB - 12" Spool |
70S-2 Carbon Steel .035 Solid Wire
70S-2 .035 x 2 LB - 4" Spool
70S-2 .035 x 11 LB - 8" Spool
70S-2 .035 x 33 LB - 12" Spool |
70S-2 Carbon Steel .045 Solid Wire
70S-2 .045 x 2 LB - 4" Spool
70S-2 .045 x 11 LB - 8" Spool
70S-2 .045 x 33 LB - 12" Spool |
70S-2 Carbon Steel 1/16" Solid Wire
70S-2 1/16" x 2 LB - 4" Spool
70S-2 1/16" x 2 LB - 8" Spool
70S-2 1/16" x 33 LB - 12" Spool |
