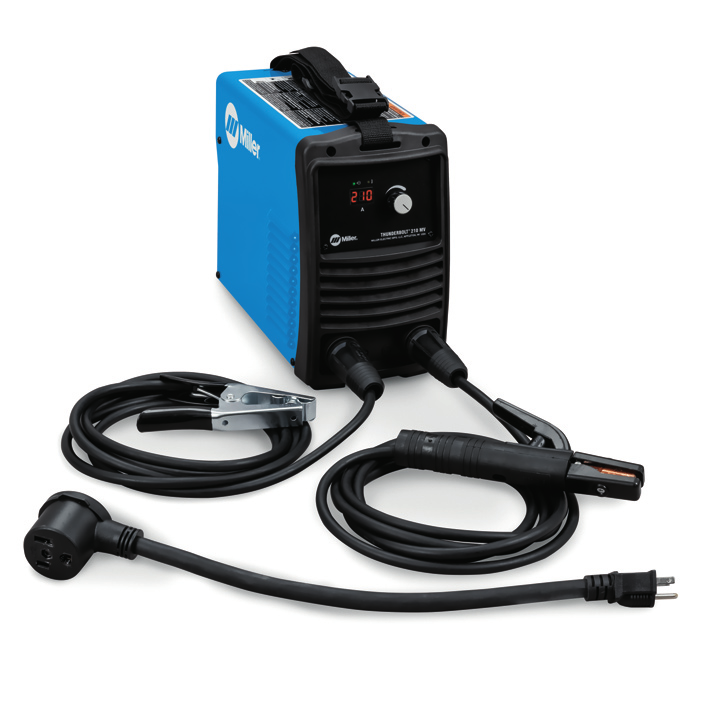

Parts Included
10 Ft. Work Cable with Electrode Holder and 25mm Dinse
10 Ft. Ground Cable with Ground Clamp and 25mm Dinse
6.5 Ft. Power Cable 240V
Cable Pouch
Light Industrial Applications
General fabrication
Maintenance and repair
Auto body
Farm and ranch
Hobby
Process
DC Stick (SMAW)
Input Power
110/115/120 V, 1-PH, 60 Hz
240 V, 1-PH, 60 Hz
Weight 15.5 lbs.
Weld Output CC
Amperage 25 A - 210 A
Material Thickness Mild Steel 1/16 - 3/16 in.
Rated Output 210 A, 20% duty cycle
Amazon link: Needs verification.

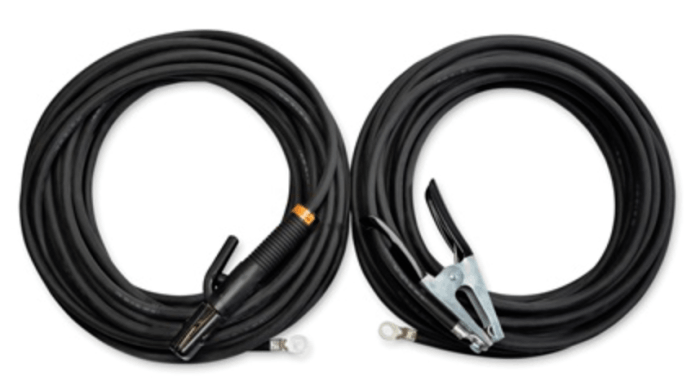

15-foot electrode cable with holder and work cable with clamp. 200 A, 100% duty cycle. Lug Cable Connectors Included.
*If you can not re-use the 25mm Dinse connectors, you will need to order (2) of part# 263801 Amazon link: Needs verification.
Amazon link: Needs verification.

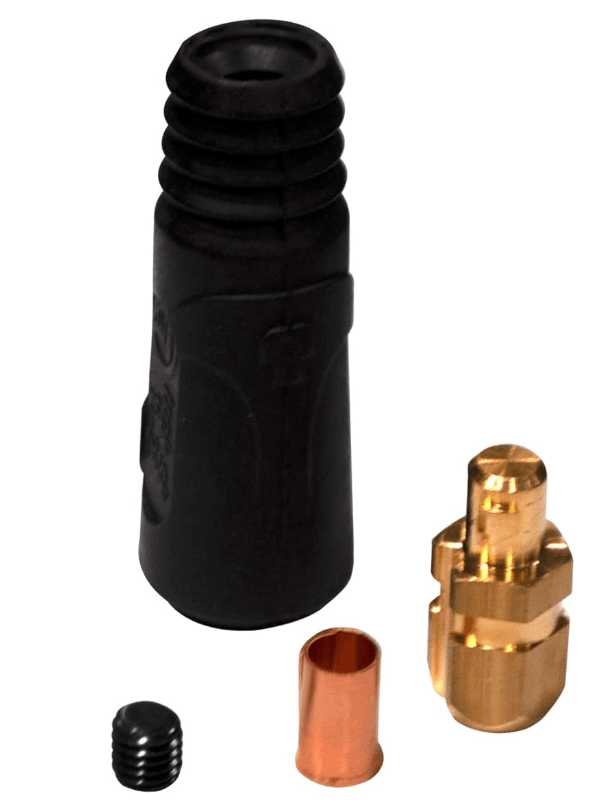

Replacement 25mm Dinse style connector
Amazon link: Needs verification.

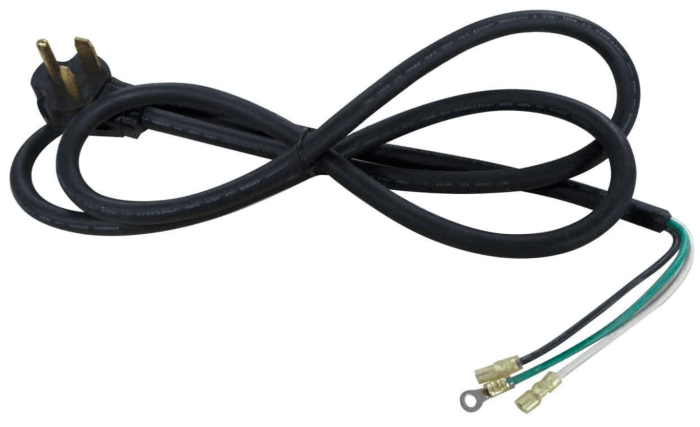

Replacement 240V 50 Amp Power Cable
Shop tip: confirm rod type, amperage, polarity, and work clamp condition before assuming the machine has failed.
