Hypertherm plasma support
RT80 Retrofit Hand Torch torch assembly and replacement parts from the Hypertherm parts catalog. Match the item number on the breakdown to the parts list before ordering.
As an Amazon Associate, I earn from qualifying purchases. Buy buttons only appear where a WSP-approved Amazon registry match exists.
| Item # | Part # | Description | Qty | Buy |
|---|---|---|---|---|
| 40 | 120932 |
Hypertherm part 120932
|
Verification pending | |
| 40 | 220006 |
Hypertherm part 220006
|
Verification pending | |
| 80 | 120927 |
Hypertherm part 120927
|
Verification pending | |
| 80 | 120980 |
Hypertherm part 120980
|
Verification pending | |
120925 |
Hypertherm Swirl ring 120925
|
Verification pending | ||
120925 |
Hypertherm part 120925
|
Verification pending | ||
120926 |
Hypertherm Electrode 120926
|
Verification pending | ||
120926 |
Hypertherm part 120926
|
Verification pending | ||
120928 |
Hypertherm Retaining cap 120928
|
Verification pending | ||
120928 |
Hypertherm part 120928
|
Verification pending | ||
120929 |
Hypertherm Shield/deflector 120929
|
Verification pending | ||
120930 |
Hypertherm part 120930
|
Verification pending | ||
120931 |
Hypertherm Nozzle 120931
|
Verification pending | ||
120931 |
Hypertherm part 120931
|
Verification pending | ||
120977 |
Hypertherm Shield/deflector 120977
|
Verification pending | ||
120979 |
Hypertherm Shield/deflector 120979
|
Verification pending | ||
220007 |
Hypertherm Nozzle 220007
|
Verification pending | ||
220059 |
Hypertherm Nozzle 220059
|
Verification pending | ||
220061 |
Hypertherm part 220061
|
Verification pending |
Source: 2023 Hypertherm Torch and Consumables Catalog for Powermax and MAX Plasma Systems, page 76. Catalog page images are used when a cleaned diagram asset is not already available.
Hypertherm plasma support
RT80 Retrofit Hand Torch torch assembly and replacement parts from the Hypertherm parts catalog. Match the item number on the breakdown to the parts list before ordering.
As an Amazon Associate, I earn from qualifying purchases. Buy buttons only appear where a WSP-approved Amazon registry match exists.
| Item # | Part # | Description | Qty | Buy |
|---|---|---|---|---|
| Torch | 087033 |
Hypertherm Torch Assembly 087033
|
Verification pending | |
| Torch | 087034 |
Hypertherm Torch Assembly 087034
|
Verification pending | |
| 1 | 128564 |
Hypertherm Torch Body 128564
|
Verification pending | |
| 2 | 027889 |
Hypertherm part 027889
|
Verification pending | |
| 3 | 058519 |
Hypertherm O-Ring 058519
|
View on Amazon | |
| 4 | 128639 |
Hypertherm Switch/Sensor 128639
|
Verification pending | |
| 5 | 075571 |
Hypertherm Switch/Sensor 075571
|
Verification pending | |
| 6 | 128521 |
Hypertherm Kit 128521
|
Verification pending | |
| 7 | 128644 |
Hypertherm Torch Handle 128644
|
Verification pending | |
| 8 | 075586 |
Hypertherm Torch Handle 075586
|
Verification pending | |
| 9 | 002244 |
Hypertherm part 002244
|
View on Amazon | |
| 10 | 027254 |
Hypertherm part 027254
|
View on Amazon | |
| 11 | 128829 |
Hypertherm Torch Lead 128829
|
Verification pending | |
| 12 | 128830 |
Hypertherm Torch Lead 128830
|
Verification pending | |
| 13 | 128826 |
Hypertherm Kit 128826
|
Verification pending | |
| 14 | 128642 |
Hypertherm Switch/Sensor 128642
|
View on Amazon |

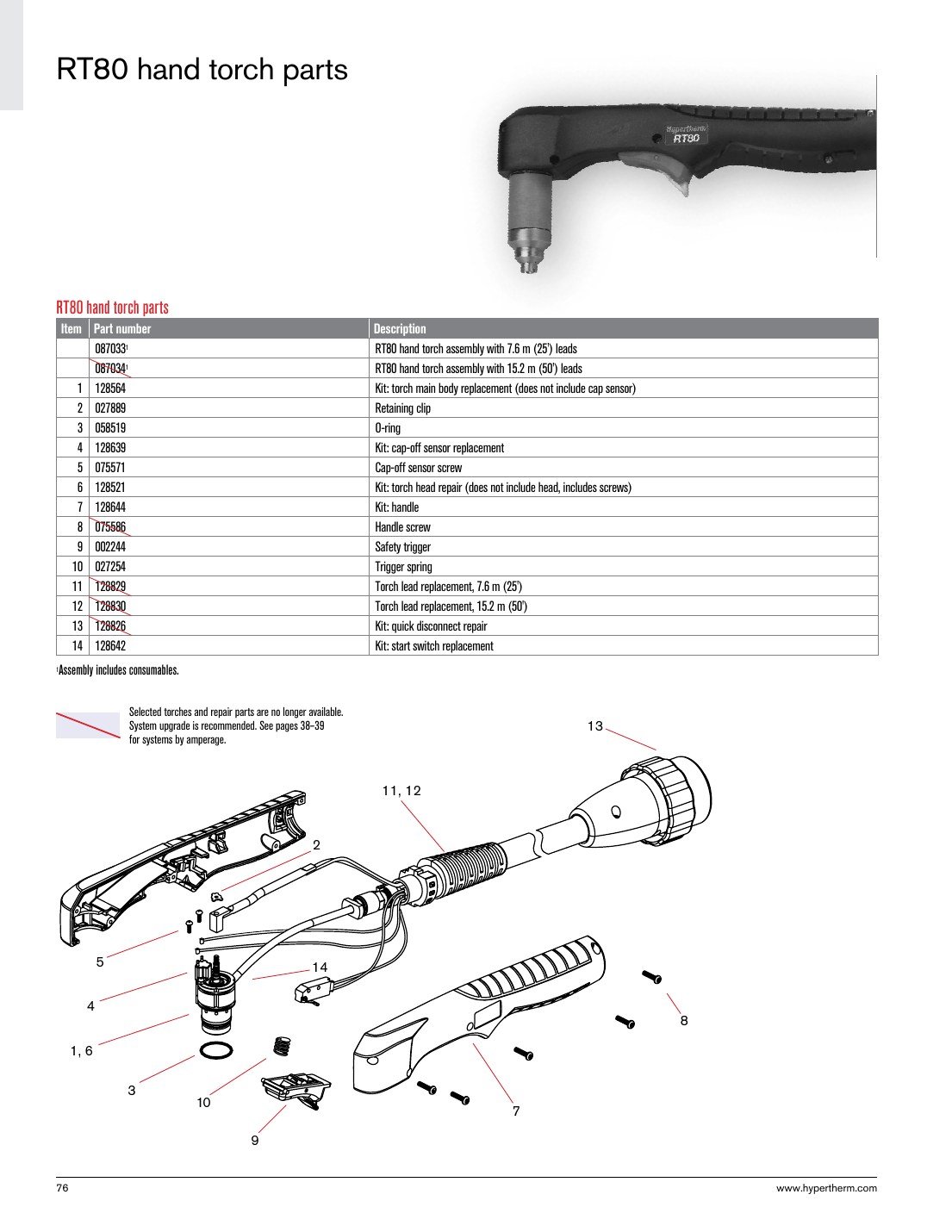

Source: 2023 Hypertherm Torch and Consumables Catalog for Powermax and MAX Plasma Systems, page 78. Catalog page images are used when a cleaned diagram asset is not already available.
