Hypertherm Plasma Machine

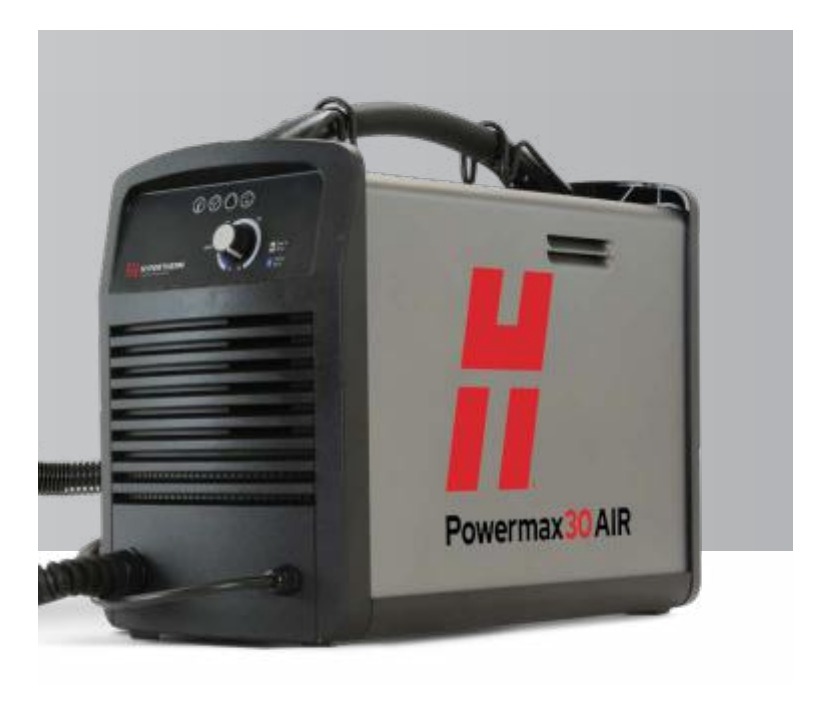

Hypertherm Powermax30 AIR

Portable Powermax plasma cutter with a built-in air compressor, dual-voltage single-phase input, and 15-30 A output. Use this page to identify the CSA, CE, or CCC package, then follow the Duramax LT hand torch / AIR T30 support path for the matching replacement torch and 420399-series consumables.

Duramax LT / AIR T30Built-in compressor15-30 ACSA / CE / CCC2.49 kW torch output
Hypertherm Powermax30 AIR

Process

Plasma Cutting

Recommended cut

8 mm (5/16 in)

Severance cut

16 mm (5/8 in)

Output range

15-30 A

Input power

120-240 V, 1-PH, 50-60 Hz

Duty cycle

35%, 240 V; 20%, 120 V

What to Check First

  • The 2025 brochure identifies the included torch as a Duramax LT hand torch. WSP routes its matching 428393 torch assembly and 420399-series wear parts through the AIR T30 breakdown page.
  • Confirm the regional package from the machine data plate: CSA stock 088096, CE stock 088098, or CCC stock 088103.
  • The built-in compressor means this machine does not use the Powermax SYNC cartridge system. Start with the torch and consumable path before ordering wear parts.

Compatible Torches

Duramax LT hand torch / AIR T30 support

The brochure names the included hand torch Duramax LT; the matching WSP AIR T30 breakdown carries the 428393 and 420399-series support rows.

Open torch breakdown

Accessory and Consumable Lookup

AIR T30 Torch Support

Torch path for the Powermax30 AIR.

Open lookup

AIR T30 Consumables

Standard AIR T30 consumable lookup for electrode, nozzle, shield, cap, and swirl ring.

Open lookup

Plasma Consumable Support

Use when comparing Hypertherm plasma consumable families.

Open lookup

Replacement Torch

Duramax LT hand torch named in the 2025 brochure; use the WSP AIR T30 breakdown for the matching 428393 replacement assembly and repair rows.

Part numberItemNotesBuy / lookup path
428393 AIR T30 hand torch assembly 15 ft lead View on Amazon View buy row

Duramax LT / AIR T30 Standard Consumables

The brochure lists these standard 30 A wear parts for the Powermax30 AIR: shield/deflector, retaining cap, nozzle, swirl ring, and electrode.

Part numberItemNotesBuy / lookup path
420399 Shield/deflector Standard AIR T30 shield/deflector View buy row
420135 Retaining cap AIR T30 retaining cap View buy row
420134 Nozzle 15-30 amp nozzle, pack of 5 View buy row
420132 Electrode 15-30 amp electrode, pack of 5 View buy row
420133 Swirl ring AIR T30 swirl ring View buy row

Consumable Kits and Accessories

These brochure-backed kits and accessories remain linked to their existing WSP lookup or approved buying paths.

Part numberItemNotesBuy / lookup path
851462 Essential consumable kit Includes shield, retaining cap, nozzles, electrodes, and swirl ring View on Amazon View buy row
428350 Combination kit Includes 2 standard nozzles and 2 standard electrodes View on Amazon View buy row
127469 Dust cover Powermax30 AIR machine dust cover View on Amazon Search this part
127102 Basic circle cutting guide Compatible with Duramax, Duramax LT, AIR, and T30 torch paths View on Amazon Search this part
027668 Deluxe circle cutting guide Compatible with Duramax, Duramax LT, AIR, and T30 torch paths View on Amazon Search this part

Machine Packages

The 2025 brochure lists three regional Powermax30 AIR packages. Choose the market package that matches the machine data plate before ordering replacement items.

Stock numberRegional packageIncluded torchPackage page
088096 120-240 V CSA standard power supply
CSA package for use in the Americas and Asia, except China.		 Duramax LT hand torch / AIR T30 support path with 4.5 m (15 ft) lead Open CSA package
088098 120-240 V CE standard power supply
CE package for use in Europe, Australia, New Zealand, RCM, Serbia, UK/UKCA, Ukraine, and other accepted countries.		 Duramax LT hand torch / AIR T30 support path with 4.5 m (15 ft) lead Open CE package
088103 120-240 V CCC standard power supply
CCC package for use in China.		 Duramax LT hand torch / AIR T30 support path with 4.5 m (15 ft) lead Open CCC package

Parts Lookup Links

Hypertherm Torch Guide

Choose the installed torch before selecting consumables.

Open torch guide

Plasma Consumables

Electrodes, nozzles, shields, swirl rings, cartridges, and kits.

Open consumables

Find My Part

Search by machine, torch, part number, or symptom.

Search parts
Full Machine Specs

Catalog Specs

Recommended cut 8 mm (5/16 in) at 500 mm/min (20 ipm); 10 mm (3/8 in) at 250 mm/min (10 ipm)
Severance cut 16 mm (5/8 in) at 125 mm/min (5 ipm)
Output range 15-30 A
Torch output 2.49 kW
Input voltage 120-240 V, 1-PH, 50/60 Hz, ±10%
Input current at 2.5 kW 120-240 V, 1-PH, 29-15 A
Rated output voltage 83 VDC
Duty cycle at 40 C 35% at 240 V; 20% at 120 V
Open circuit voltage 256 VDC
Weight with 4.5 m torch 9.5 kg (21.4 lb)
Dimensions with handles 420 mm (16.5 in) D x 195 mm (7.7 in) W x 333 mm (13.1 in) H
Input cable 3 m (10 ft)
Power supply type Inverter - IGBT
Engine drive requirement 5.5 kW for full 30 A output
Electrical efficiency 86%
Warranty Power supply: 6 years; torch: 1 year

Next Step

Use the compatible torch card first. Consumables and replacement parts should be chosen from the torch or cartridge path, not guessed from the machine name alone.

Need More Help?

Cut Quality

Start with the consumable or cartridge path, then verify air quality, torch seating, ground clamp, and process settings.

Open cut quality guide

Older Powermax Pages

Use the older Powermax support pages when the machine is not part of the current catalog family.

Open Powermax family hub

Search

Use Find My Part for part numbers, cartridge numbers, torch names, or machine model searches.

Find My Part

Source: Hypertherm Powermax30 AIR brochure 860620EN-EU, Revision 5, October 2025. The brochure provides the machine specifications, three regional stock numbers, Duramax LT hand torch package description, 420399-series consumables, and accessories. WSP links the matching AIR T30 breakdown for the 428393 torch assembly and standard wear-part rows.
